2048 game version for Excel

This is an unblocked Excel version of the viral web game 2048 by Gabriele Cirulli. Excel is fun!

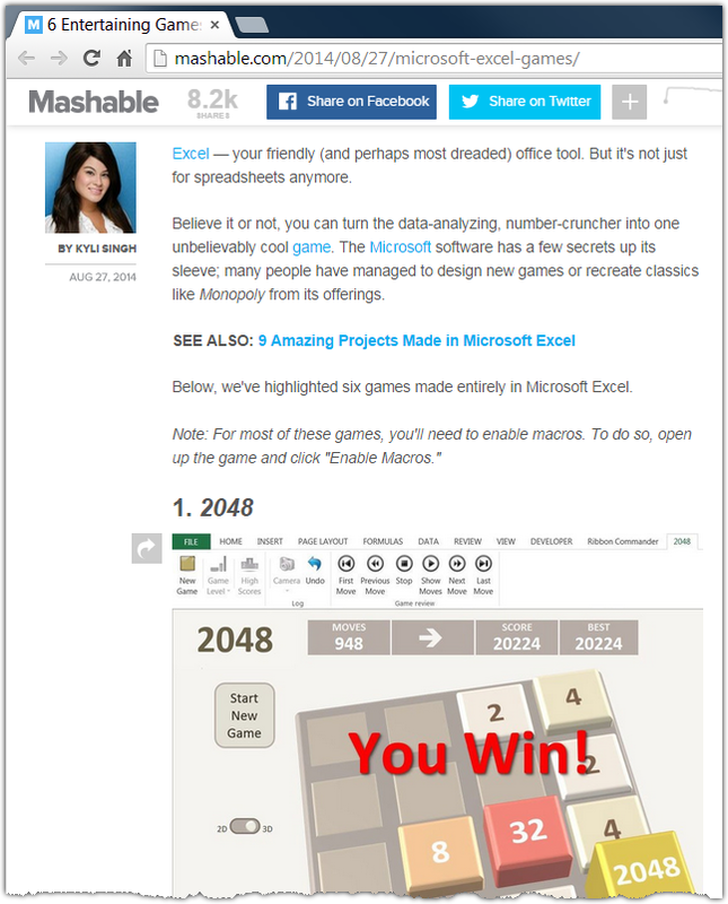

Our game has been featured in blogs.Office.com & Mashable.com (read the news section below)

Game play: Use the arrow keys to move tiles left, right, up, & down within the 2048 grid. If two tiles of the same number collide while moving, they will merge into a single tile equal to the total value of the two tiles. During every turn, a new tile will appear with a value of either 2 (90% of the time) or 4 (10%).

Game is over when the 2048 tile is made or when no further move is possible.

If you get frustrated by constant failure, here is quick tip: Place high value tiles near any edge - like in examples shown below - and keep building them up!

2048 game with extra features powered by Ribbon Commander

Features of the Excel version:

Play online or off-line in 2D or 3D
Sound effects!
Every game move is logged in a worksheet for potential strategy analysis using controls in the Ribbon.
Game can be saved and resumed later (just save workbook).
Undo bad moves!
Even tweak VBA to 4096, if 2048 is too easy for you!

The workbook requires enabled macros to run (VBA is unlocked).
Read here how to enable macros

News

Our 2048 Excel Style Game In The News

Post by Daniel Stein, Microsoft Excel program manager

Das virale Computerspiel 2048 gibt es nun auch als Version für das Tabellenkalkulationsprogramm Excel

Linkedin comment published with Rick's permission

Want To Have Fun At Work? Look No Further Than Excel!

Download

Caution: Addictive game!

Click button to download the FREE (VBA unlocked) 2048 game for Excel. Have fun!

vba

Learn VBA: 2048 Code Is Unlocked!

Option Explicit

' ------------------------------------------------------------
' Excel version of the 2048 web game by Gabriele Cirulli
' Created by Peter Bartholomew & Petros Chatzipantazis
' http://www.spreadsheet1.com/2048-game-version-for-excel.html
' Please distribute freely. Attribution required.
' ------------------------------------------------------------
' Modifications by Douglas Bliss:
' - Create Tile property to access grid data based on direction
' - Create a single MakeMove function based on direction
' - Call MakeMove function from key handlers
' ------------------------------------------------------------
' Tile Property - Accesses grid data based on direction
' (not the most efficient, but it's fast enough here)
' ------------------------------------------------------------

Private Property Get Tile(ByVal Direction As String, ByVal Row As Long, ByVal Col As Long) As Long

    Select Case Direction
        Case "L"
            Tile = Range("State").Cells(Row, Col).Value
        Case "R"
            Tile = Range("State").Cells(Row, 5 - Col).Value
        Case "U"
            Tile = Range("State").Cells(Col, 5 - Row).Value
        Case "D"
            Tile = Range("State").Cells(5 - Col, Row).Value
        Case Else
    End Select

End Property

Private Property Let Tile(ByVal Direction As String, ByVal Row As Long, ByVal Col As Long, ByVal RHS As Long)

    Select Case Direction
        Case "L"
            Range("State").Cells(Row, Col).Value = RHS
        Case "R"
            Range("State").Cells(Row, 5 - Col).Value = RHS
        Case "U"
            Range("State").Cells(Col, 5 - Row).Value = RHS
        Case "D"
            Range("State").Cells(5 - Col, Row).Value = RHS
        Case Else
    End Select

End Property

' ------------------------------------------------------------
' MakeMove - abstract logic for shifting/combining tiles
' ------------------------------------------------------------

Private Sub MakeMove(Direction As String)

    Dim bIsMove As Boolean
    Dim R As Long, C As Long, I As Long, lScore As Long

    lScore = 0

    For R = 1 To 4 Step 1
        For C = 1 To 3 Step 1

            ' Move from next tile over if empty:
            If Tile(Direction, R, C) = 0 Then
                For I = C + 1 To 4 Step 1
                    If Tile(Direction, R, I) > 0 Then
                        Tile(Direction, R, C) = Tile(Direction, R, I)
                        Tile(Direction, R, I) = 0
                        bIsMove = True
                        Exit For
                    End If
                Next I
            End If
            ' Combine with next tile over if they match:
            If Tile(Direction, R, C) > 0 Then
                For I = C + 1 To 4 Step 1
                    If Tile(Direction, R, I) > 0 Then
                        If Tile(Direction, R, C) = Tile(Direction, R, I) Then
                            lScore = lScore + 2 * 2 ^ Tile(Direction, R, C)
                            Tile(Direction, R, C) = Tile(Direction, R, C) + 1
                            Tile(Direction, R, I) = 0
                            bIsMove = True
                        End If
                        Exit For    ' stop combining after first non-empty tile
                    End If
                Next I
            End If
        Next C
    Next R

    m_lTotalScore = m_lTotalScore + lScore
    If bIsMove Then AddTile
    FormatTiles Direction, bIsMove
    If bIsMove Then MidiMakeMove lScore

End Sub

' ------------------------------------------------------------
' Key Handlers:
' ------------------------------------------------------------

Sub LeftArrowPressed()
    MakeMove "L"
End Sub

Sub RightArrowPressed()
    MakeMove "R"
End Sub

Sub UpArrowPressed()
    MakeMove "U"
End Sub

Sub DownArrowPressed()
    MakeMove "D"
End Sub

VBA Chord Diagram With Hierarchical Edge Bundling

This VBA chord diagram uses the free D3.js JavaScript library to demonstrate a graphical method of displaying the inter-relationships between code procedures in the 2048 VBA project powered by Ribbon Commander.

The data is arranged radially around a circle with the relationships between the points drawn as arcs connecting the procedures together. Instead of using straight lines to show the interconnections, this chord diagram employs a technique called 'hierarchical edge bundling' to reduce visual complexity.

The project name, module type and name is shown at the bottom of the chart when the mouse pointer hovers over a VBA procedure (mouse click not required).

Build identical charts for your programs using the VBA Toolkit addin powered by Ribbon Commander

The 2048 Game In Excel
